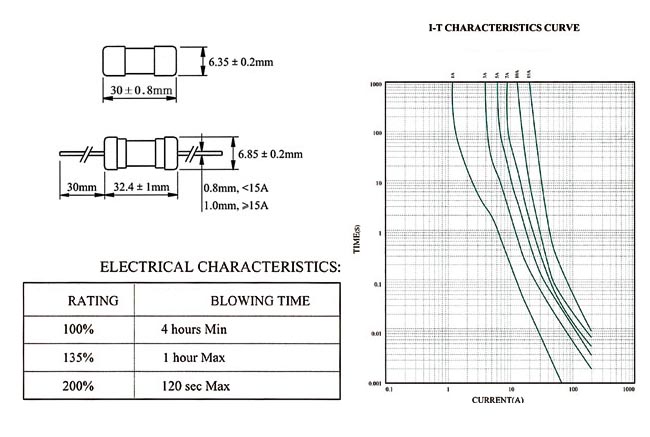

ф6.35×30 (ф6.35×32) Ceramic Tube Fuse(Quick-acting) FBCTF(1055,1056)

宁波帆倍利电子有限公司
地址:宁波鄞州集仕港工业园区.

电话: +86-574-87793097
传真: +86-574-87792835
网址:http://www.fbelefuse.com
邮件地址: sales@fbelefuse.com

首页

FBCTF(1055,1056)

ф6.35×30 (ф6.35×32) Ceramic Tube Fuse(Quick-acting) FBCTF(1055, 1056)

FBCTF(1055,1056)

产品描述

INTERRUPTING RATING:
10,000 amperes at 125V AC(32mA-5A)
35 amperes at 250V AC(32mA-1A)
100 amperes at 250V AC(1.2A-3.5A)
200 amperes at 250V AC(4A-5A)
500 amperes at 125V AC(1A-15A)MITI TYPE A
100 amperes at 250V AC(1A-15A)MITI TYPE A

Appliance Lamp Holder	FBCTF1055-0100	FBCTF1055-0125	FBCTF1055-0150	FBCTF1055-0160	FBCTF1055-0200	FBCTF1055-0250	FBCTF1055-0300	FBCTF1055-0315	FBCTF1055-0350	FBCTF1055-0400
Rated Current	100mA	125mA	150mA	160mA	200mA	250mA	300mA	315mA	350mA	400mA
Appliance Lamp Holder	FBCTF1055-0500	FBCTF1055-0600	FBCTF1055-0700	FBCTF1055-0750	FBCTF1055-0800	FBCTF1055-1000	FBCTF1055-1200	FBCTF1055-1250	FBCTF1055-1500	FBCTF1055-1600
Rated Current	500mA	600mA	700mA	750mA	800mA	1A	1.2A	1.25A	1.5A	1.6A

Appliance Lamp Holder	FBCTF1055-1800	FBCTF1055-2000	FBCTF1055-2500	FBCTF1055-3000	FBCTF1055-3150	FBCTF1055-3500	FBCTF1055-4000	FBCTF1055-5000	FBCTF1055-6000	FBCTF1055-6300
Rated Current	1.8A	2.0A	2.5A	3.0A	3.15A	3.5A	4.0A	5.0A	6.0A	6.3A
Appliance Lamp Holder	FBCTF1055-7000	FBCTF1055-8000	FBCTF1055-10000	FBCTF1055-12000	FBCTF1055-15000	FBCTF1055-20000	FBCTF1055-25000	FBCTF1055-30000
Rated Current	7.0A	8.0A	10.0A	12.0A	15.0A	20.0A	25.0A	30.0A
