You are here: Home » Products » ELECTRONICS FUSE » Glass Tube Fuse » FBGTF(1033,1034)
-

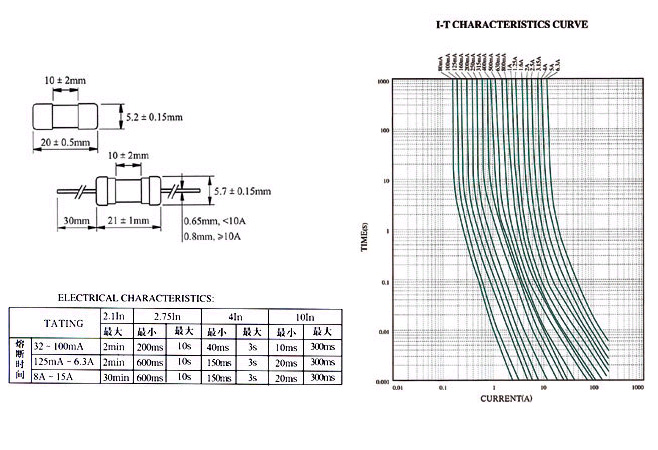

RT1-20(RT2-20)Φ5.2×20 Glass Tube Fuse (Time-delay) FBGTF(1033, 1034)
FBGTF(1033,1034)
-
Description
INTERRUPTING RATING:
35A OR 10In WHICHEVER IS GREATER
3C/VED/SEMKO
Appliance Lamp HolderFBGTF1033-0100 FBGTF1033-0125 FBGTF1033-0150 FBGTF1033-0160 FBGTF1033-0200 FBGTF1033-0250 FBGTF1033-0300 FBGTF1033-0315 FBGTF1033-0400 FBGTF1033-0500 Rated Current100mA 125mA 150mA 160mA 200mA 250mA 300mA 315mA 400mA 500mA Rated Voltage2500 2000 1900 1900 1500 1300 1100 1100 1000 900 Appliance Lamp HolderFBGTF1033-0600 FBGTF1033-0700 FBGTF1033-0750 FBGTF1033-0800 FBGTF1033-1000 FBGTF1033-1200 FBGTF1033-1250 FBGTF1033-1500 FBGTF1033-1600 FBGTF1033-1800 Rated Current600mA 700mA 750mA 800mA 1A 1.2A 1.25A 1.5A 1.6A 1.8A Rated Voltage300 300 300 250 150 150 150 150 150 150 Appliance Lamp HolderFBGTF1033-2000 FBGTF1033-2500 FBGTF1033-3000 FBGTF1033-3150 FBGTF1033-3500 FBGTF1033-4000 FBGTF1033-5000 FBGTF1033-6000 FBGTF1033-6300 FBGTF1033-7000 Rated Current2A 2.5A 3.0A 3.15A 3.5A 4.0A 5.0A 6.0A 6.3A 7.0A Rated Voltage150 120 100 100 100 100 100 100 100 90 Appliance Lamp HolderFBGTF1033-8000 FBGTF1033-10000 FBGTF1033-12000 FBGTF1033-15000 Rated Current8A 10A 12A 15A Rated Voltage90 90 90 90
