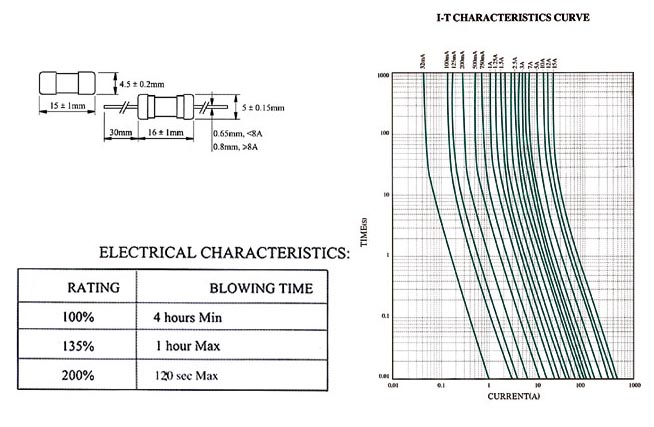

Φ4.5×15 Glass Tube Fuse (Time-delay)
FBGTF(1017,1018)
-
Description
INTERRUPTING RATING:
50 amperes at 300V AC(300mA-5A)
50 amperes at 250V AC(300mA-2.25A)
100 amperes at 250V AC(2.5A-5A)
100 amperes at 250V AC(1A-15A)MITI TYPE A
500 amperes at 125V AC(1A-15A)MITI TYPE A
UL/CSA/T-MARK
Appliance Lamp HolderFBGTF1017-0100 FBGTF1017-0125 FBGTF1017-0150 FBGTF1017-0160 FBGTF1017-0200 FBGTF1017-0250 FBGTF1017-0300 FBGTF1017-0315 FBGTF1017-0350 FBGTF1017-0400 Rated Current100mA 125mA 150mA 160mA 200mA 250mA 300mA 315mA 350mA 400mA Appliance Lamp HolderFBGTF1017-0500 FBGTF1017-0600 FBGTF1017-0700 FBGTF1017-0750 FBGTF1017-0800 FBGTF1017-1000 FBGTF1017-1200 FBGTF1017-1250 FBGTF1017-1500 FBGTF1017-1600 Rated Current500mA 600mA 700mA 750mA 800mA 1A 1.2A 1.25A 1.5A 1.6A Appliance Lamp HolderFBGTF1017-1800 FBGTF1017-2000 FBGTF1017-2500 FBGTF1017-3000 FBGTF1017-3150 FBGTF1017-3500 FBGTF1017-4000 FBGTF1017-5000 FBGTF1017-6000 FBGTF1017-6300 Rated Current1.8A 2.0A 2.5A 3.0A 3.15A 3.5A 4.0A 5.0A 6.0A 6.3A Appliance Lamp HolderFBGTF1017-7000 FBGTF1017-8000 FBGTF1017-10000 FBGTF1017-12000 FBGTF1017-15000 Rated Current7.0A 8.0A 10.0A 12.0A 15.0A
