You are here: Home » Products » ELECTRONICS FUSE » Glass Tube Fuse » FBGTF(1035,1036)
-

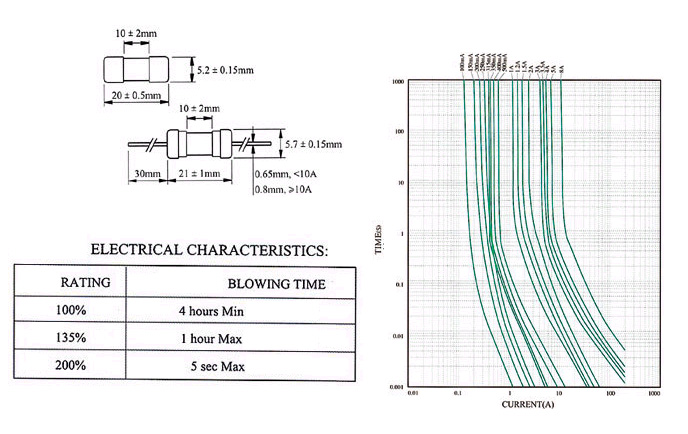

51F(52F)Φ5.2×20 Glass Tube Fuse (Quick-acting) FBGTF(1035, 1036)
FBGTF(1035,1036)
-
Description
INTERRUPTING RATING:
10,000 amperes at 125V AC(32mA-5A)
35 amperes at 250V AC(32mA-1A)
100 amperes at 250V AC(1.2A-3.5A)
200 amperes at 250V AC(4A-5A)
500 amperes at 125V AC(1A-15A)MITI TYPE A
100 amperes at 250V AC(1A-15A)MITI TYPE A
UL/CSA/T-MARK
Appliance Lamp HolderFBGTF1035-0100 FBGTF1035-0125 FBGTF1035-0150 FBGTF1035-0160 FBGTF1035-0200 FBGTF1035-0250 FBGTF1035-0300 FBGTF1035-0315 FBGTF1035-0350 FBGTF1035-0400 Rated Current100mA 125mA 150mA 160mA 200mA 250mA 300mA 315mA 350mA 400mA Appliance Lamp HolderFBGTF1035-0500 FBGTF1035-0600 FBGTF1035-0700 FBGTF1035-0750 FBGTF1035-0800 FBGTF1035-1000 FBGTF1035-1200 FBGTF1035-1250 FBGTF1035-1500 FBGTF1035-1600 Rated Current500mA 600mA 700mA 750mA 800mA 1A 1.2A 1.25A 1.5A 1.6A Appliance Lamp HolderFBGTF1035-1800 FBGTF1035-2000 FBGTF1035-2500 FBGTF1035-3000 FBGTF1035-3150 FBGTF1035-3500 FBGTF1035-4000 FBGTF1035-5000 FBGTF1035-6000 FBGTF1035-6300 Rated Current1.8A 2.0A 2.5A 3.0A 3.15A 3.5A 4.0A 5.0A 6.0A 6.3A Appliance Lamp HolderFBGTF1035-7000 FBGTF1035-8000 FBGTF1035-10000 FBGTF1035-12000 FBGTF1035-15000 Rated Current7.0A 8.0A 10.0A 12.0A 15.0A
